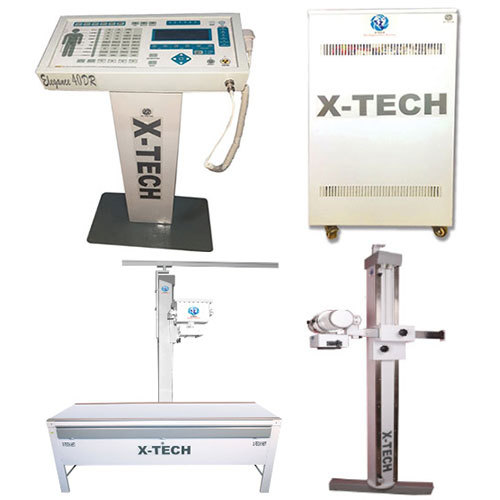

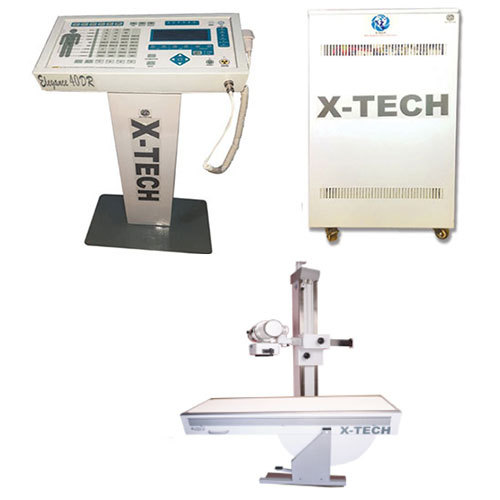

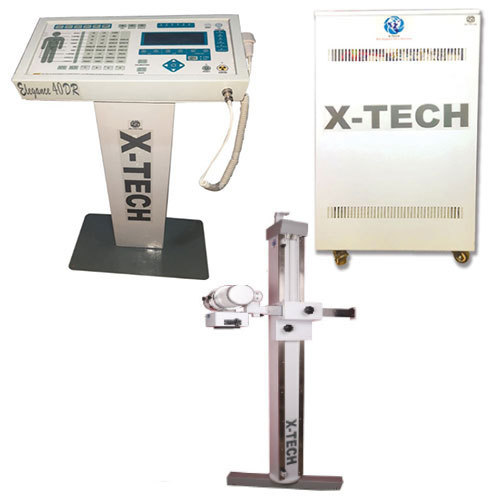

40kW High Frequency Fixed Machine, Multiposition Bucky Table
627200 INR
Product Details:
- Material High-strength medical grade steel, Aluminum alloy housing
- Condition Brand New
- Technology High Frequency X-ray
- Portable No (Fixed installation)
- Light Source N/A (X-ray Emission)
- Operating Temperature +10C to +40C
- Humidity % 80% (non-condensing)
- Click to View more
X
40kW High Frequency Fixed Machine, Multiposition Bucky Table Price And Quantity
- 627200 INR
- 1 Piece
- Up to 200 kg (table loading)
- Floor mounted, vertical/horizontal movement
- High-resolution output for precise diagnostics
- 14" × 17" and 17" × 17" cassette support
- Multiposition Bucky Table with manual and electromagnetic locking
- Automatic exposure control, Emergency stop, Overload protection
- Microprocessor based digital control console
- Rotating anode, dual focal spot
- 40 kW
- Inbuilt aluminum filter, minimum 2.1 mm Al eq.
- Longitudinal and lateral movement support
40kW High Frequency Fixed Machine, Multiposition Bucky Table Product Specifications
- High Frequency X-ray
- Medical X-ray Imaging, Diagnostic Radiography
- +10C to +40C
- AC 220V/380V, 50/60 Hz
- Digital status indicators, Exposure ready LED
- Approx. 2100 mm 800 mm 800 mm (table size, may vary by model)
- Approximately 185 kg
- 40 kHz 100 kHz (high-frequency inverter)
- 80% (non-condensing)
- Brand New
- Automatic exposure control, Manual adjustment possible
- High-sensitivity X-ray detection sensors
- 8 kVA
- Compatible with CR/DR digital imaging systems
- N/A (X-ray Emission)
- No (Fixed installation)
- 0.001 6.3 sec (configurable)
- 0.6/1.3 mm dual focus (standard X-ray tube focus)
- High-strength medical grade steel, Aluminum alloy housing
- Electricity
- Up to 200 kg (table loading)
- Floor mounted, vertical/horizontal movement
- High-resolution output for precise diagnostics
- 14" × 17" and 17" × 17" cassette support
- Multiposition Bucky Table with manual and electromagnetic locking
- Automatic exposure control, Emergency stop, Overload protection
- Microprocessor based digital control console
- Rotating anode, dual focal spot
- 40 kW
- Inbuilt aluminum filter, minimum 2.1 mm Al eq.
- Longitudinal and lateral movement support
Product Description
Specification
| Stand | Fixed with rotation |
| Power | 40kw |
| Input Supply | 440 VAC |
| mA (Max) | 500mA |
| Kvp (max) | 125 kVp |
| Control | APR/ Manual |
| Display | Digital LCD (Kvp/ mA/ mAS/ S) |
| Tube | Model: 7239 canon Japan |
| Approved | CE, FDA, BIS, AERB, Iso 9001, ISO 45001, ISO 13485, ISO 14001, ISO 10002 |
Advanced Imaging Capabilities
This machine offers high-frequency X-ray technology, delivering clear, accurate images crucial for diagnostic radiography. Its digital control console and dual focal spot ensure image precision, while high-sensitivity sensors maximize detection efficiency. The multiposition Bucky table accommodates diverse patient imaging needs for thorough examination.
Superior Patient and Operator Safety
Safety features include automatic exposure control, overload protection, and emergency stop mechanisms. The inbuilt aluminum filter guarantees minimum 2.1 mm Al eq. filtration, protecting both patients and staff from unnecessary radiation. The high-strength medical grade materials provide durability and stability, supporting patients up to 200 kg.
Flexible Operation and Control
The microprocessor-based digital control console enables seamless adjustment of exposure times and settings. Operators can make manual or automatic exposure adjustments, adapting swiftly to clinical requirements. The system's digital status indicators and exposure-ready LEDs streamline workflow for efficient, safe radiographic examinations.
FAQ's of 40kW High Frequency Fixed Machine, Multiposition Bucky Table:
Q: How does the 40kW High Frequency Fixed Machine enhance image clarity for diagnostics?
A: This machine uses high-frequency X-ray technology and a rotating anode, dual focal spot tube assembly to produce high-resolution images. The advanced sensors and digital imaging compatibility ensure sharp, precise details for accurate diagnostic interpretation.Q: What types of cassette sizes does the multiposition Bucky table support?
A: The table is compatible with both 14" 17" and 17" 17" cassettes, allowing flexibility in patient imaging and accommodating various examination requirements.Q: When should the emergency stop feature be used during operation?
A: The emergency stop feature should be activated immediately if any unsafe condition arises, such as equipment malfunction or potential harm to patient or staff. It quickly halts all ongoing processes, ensuring safety.Q: Where can this X-ray machine be installed and used?
A: Designed for fixed installations, this machine is suitable for hospitals, diagnostic radiology centers, and medical imaging facilities where reliable, high-performance radiography equipment is needed.Q: What is the process for adjusting tabletop movement during patient positioning?
A: Tabletop movement can be manually or electromagnetically locked, with both longitudinal and lateral adjustments supported. This flexibility allows for precise patient positioning to obtain optimal diagnostic images.Q: What benefits does automatic exposure control provide to operators and patients?
A: Automatic exposure control simplifies the imaging process by optimizing exposure parameters, ensuring consistent image quality and reducing radiation dosage. Operators benefit from streamlined workflows while patients receive safer exams.Q: How is patient and operator safety ensured during X-ray imaging?
A: Safety measures include an inbuilt aluminum filter (minimum 2.1 mm Al eq.), overload protection, automatic exposure control, and emergency stop functions, all designed to minimize risks and protect both patients and medical staff during use.Tell us about your requirement
